Mineral Fiber Board
Mineral Fiber Board Installation Guide

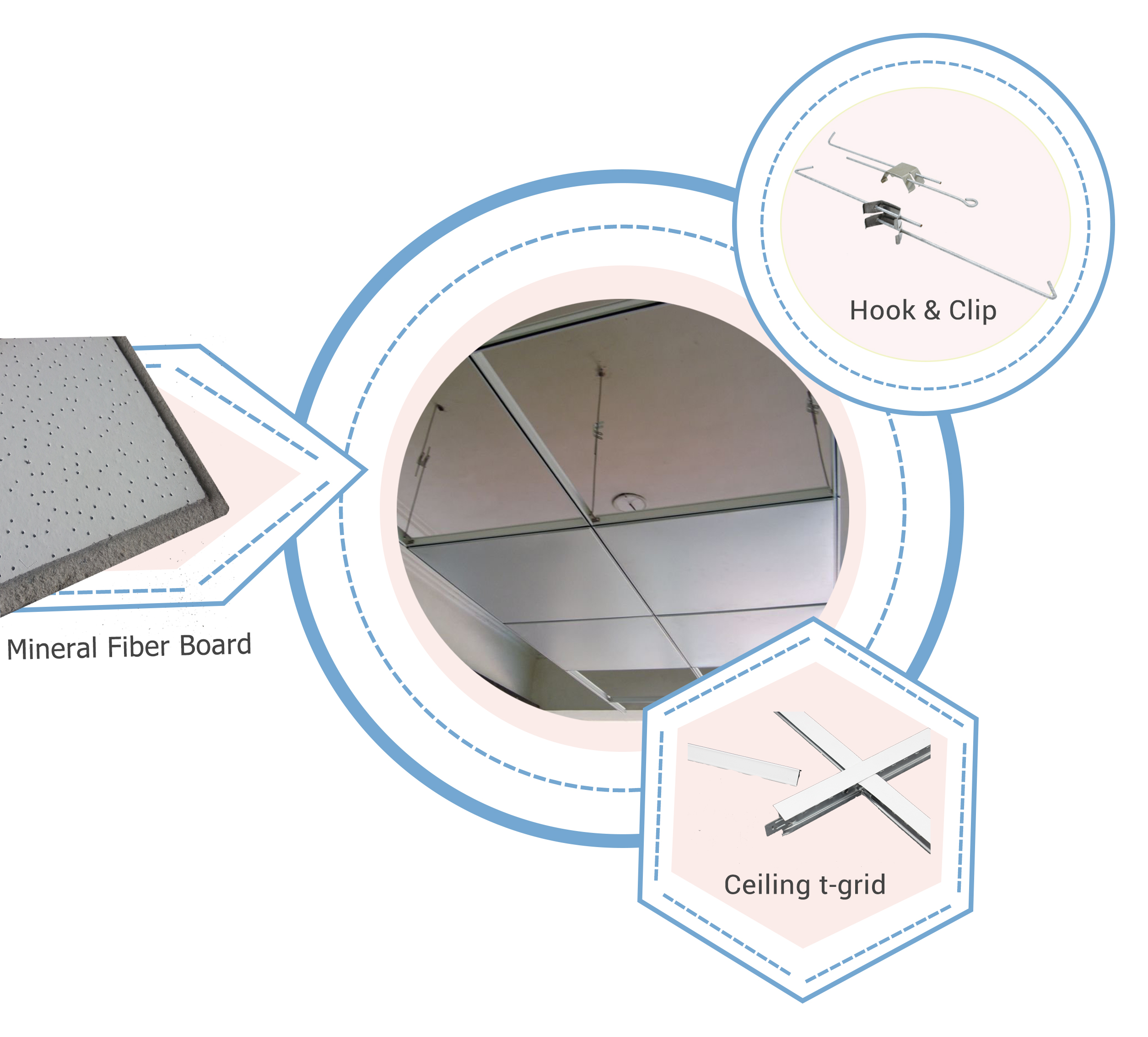

Suspended Installation
Using metal frames and hanging systems, suitable for large spaces and scenarios requiring concealed piping
Direct Adhesion
Suitable for flat ceiling surfaces, using specialized adhesive for direct application, quick and convenient installation
Recessed Installation
Ideal for standard modular ceiling systems, mineral fiber boards placed directly into pre-installed T-bar grid systems
Mineral Fiber Board Features
Excellent Acoustics
High Noise Reduction Coefficient (NRC) values ranging from 0.5 to 0.9, perfect for sound absorption and noise control
Fire Resistance
Class A fire rating with up to 90-minute fire protection capabilities, non-combustible material composition
Moisture Resistance
Humidity resistant up to 95% RH, dimensional stability even in changing environmental conditions
Thermal Insulation
Excellent thermal properties with R-values between 2.2-3.5, contributing to energy efficiency and comfort
Eco-Friendly
Made from recycled materials (up to 75%), low VOC emissions, and contributes to LEED certification points
Versatile Applications
Ideal for offices, educational facilities, healthcare, hospitality, and commercial spaces requiring acoustic performance
Mineral Fiber Board - Technical Parameters
| Parameter | Specification |
|---|---|
| Material | Mineral Wool, Perlite, Clay |
| Density | 160-180 kg/m³ |
| Standard Size | 600×600mm, 600×1200mm |
| Thickness | 12mm, 15mm, 20mm, 25mm |
| NRC (Noise Reduction Coefficient) | 0.50-0.70 |
| Fire Rating | Class A |
| Thermal Conductivity | 0.052-0.057 W/m·K |
| Moisture Resistance | RH 90% |
| Light Reflectance | 83-85% |

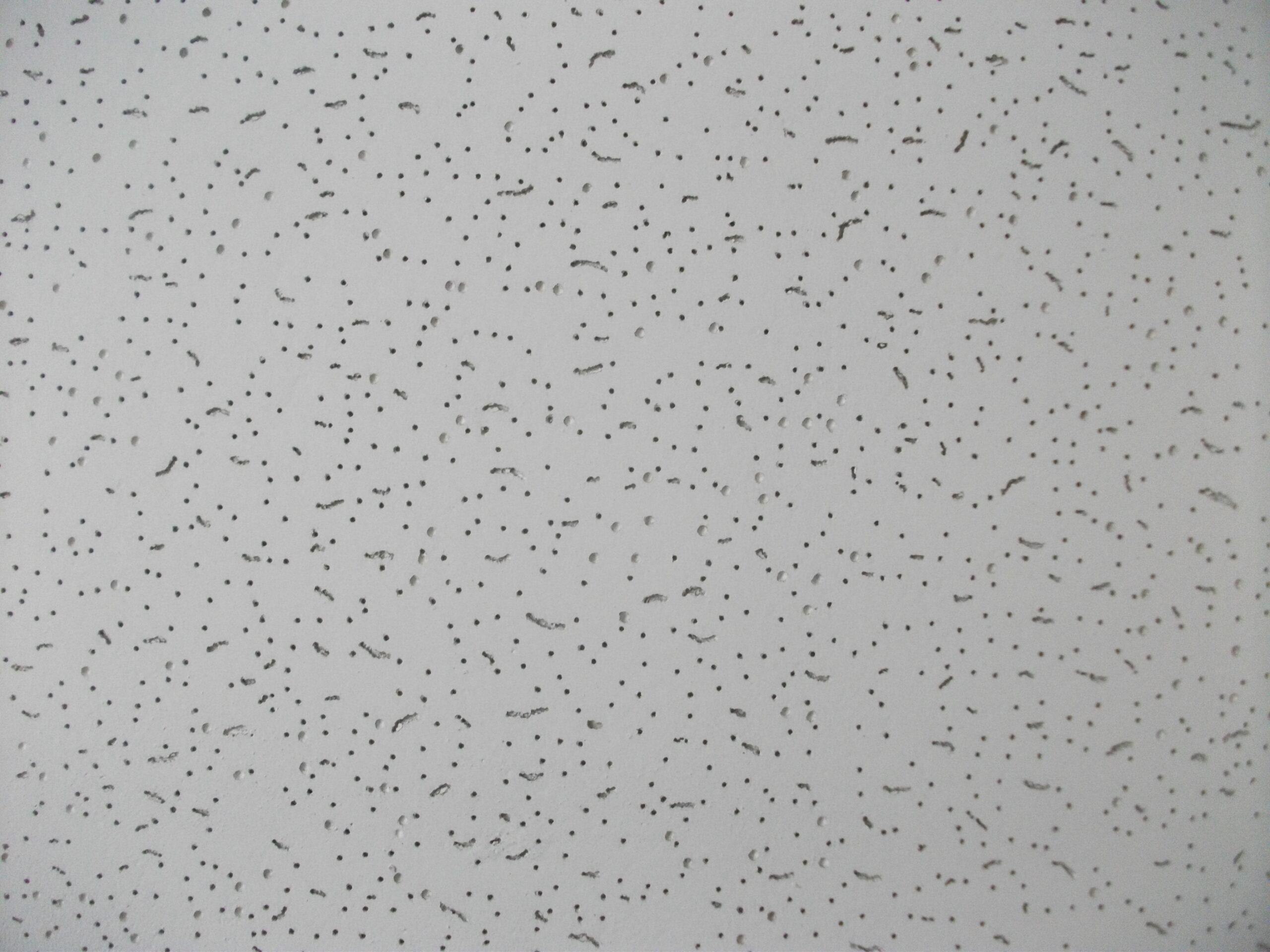

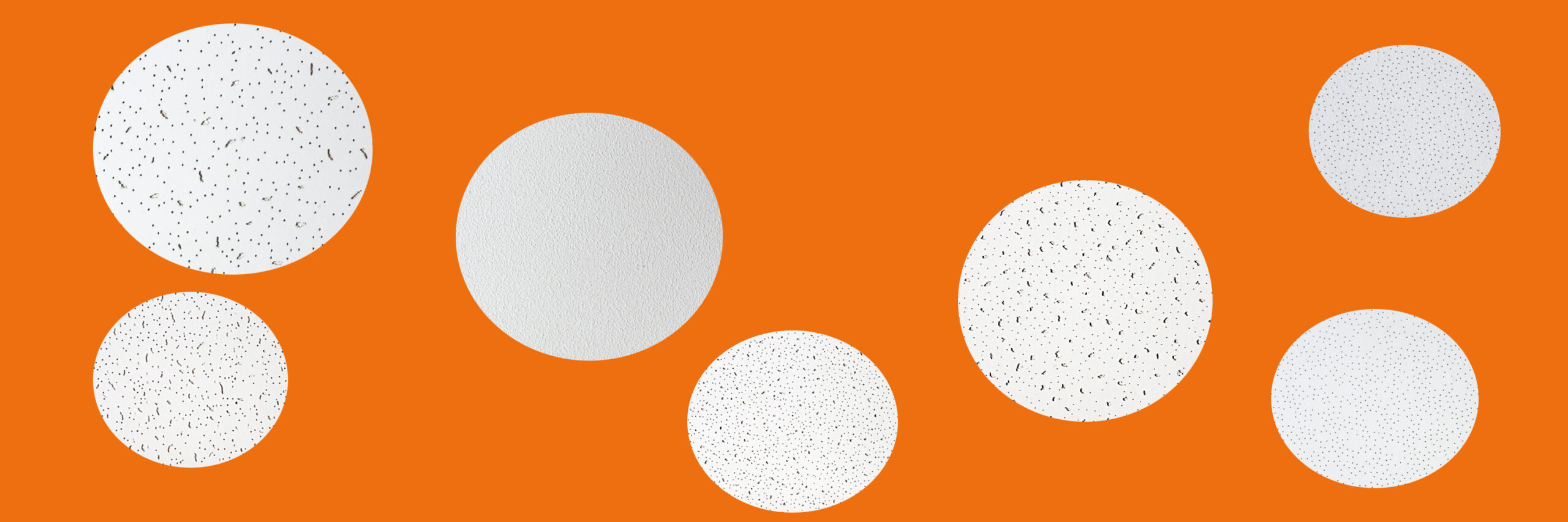

Mineral Fiber Board Sample Show
