Aluminum Ceiling
TRUSUS offer all kinds of aluminum ceiling with special accessories, which makes sure the easily and safely installation. They are popular to use at office, railway, station, store airport and other large areas.
TRUSUS Aluminum Ceiling Solutions
We offer comprehensive aluminum ceiling systems with specialized accessories, ensuring easy and secure installation. Perfect for offices, railway stations, retail spaces, airports, and other large commercial areas.

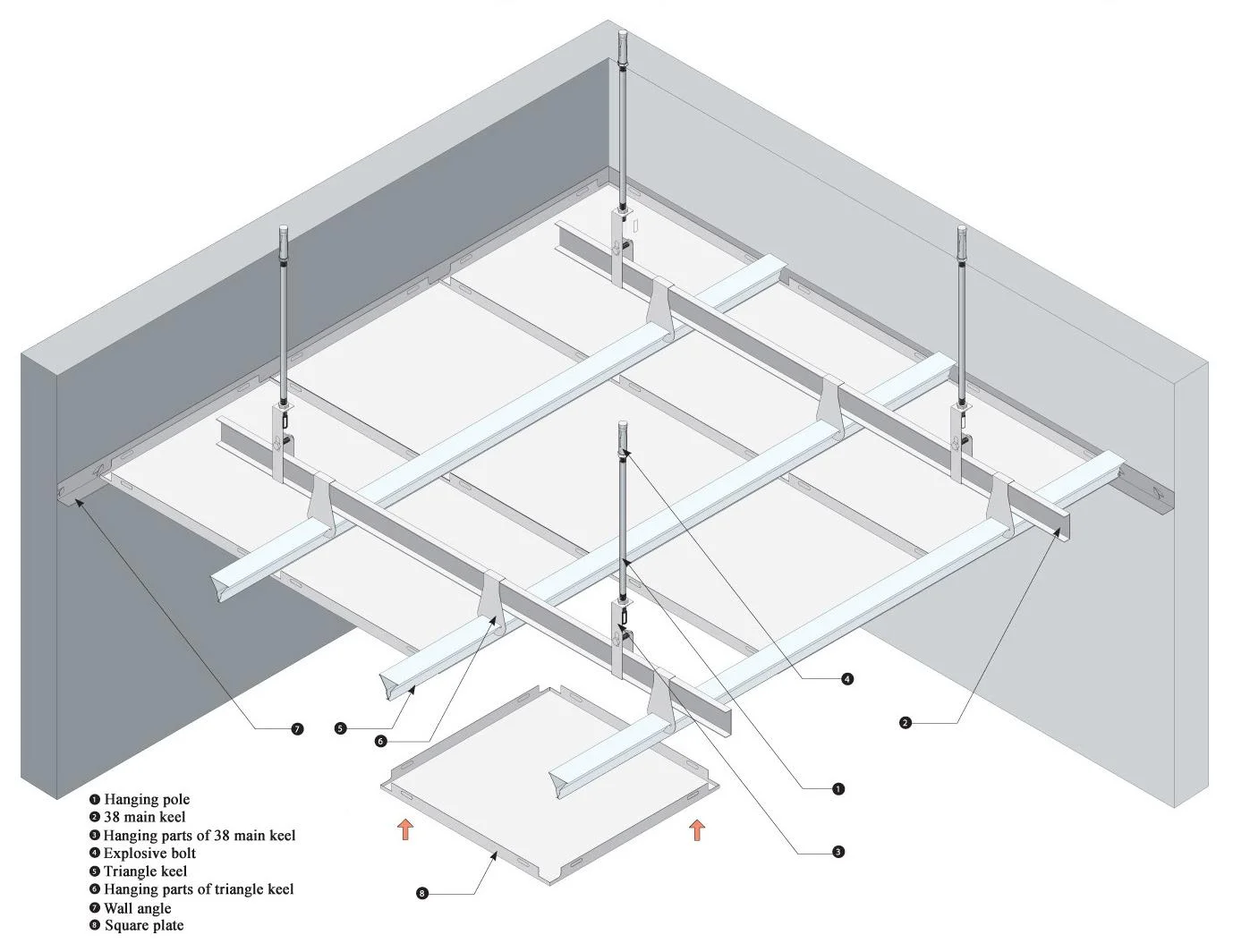

Installation Drawing of Lay-in
Installation Drawing of Clip in
Features of Aluminum Ceiling
Discover the exceptional qualities that make our gypsum boards the preferred choice for modern construction
Practical & Durable
High reflection and refraction against light with a hard, scratch-resistant surface for lasting performance.
Aesthetically Beautiful
Choose between mirror or matte effect finishes for a visually stunning appearance in any space.
Static Resistant
Strong resistance against static electricity, providing better durability and performance over time.
Health Conscious
Shields against electromagnetic wave radiation, creating healthier living and working environments.
Color Retention
Maintains uniform color without fading, ensuring your spaces look fresh and vibrant for years.
Versatile Application
Perfect for various applications in residential, commercial, and institutional buildings with easy installation.
Aluminum Ceiling Specifications
| Parameter | Specifications |
|---|---|
| Material | Aluminum alloy |
| Panel Thickness | 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm |
| Standard Panel Size | 600×600mm, 300×300mm, 300×600mm, 600×1200mm (Customizable) |
| Surface Treatment | Powder coating, PVDF coating, Polyester coating, Wooden grain transfer printing |
| Colors | White, Silver, Black, Custom RAL colors available |
| Perforation Options | Round, Square, Slot, Custom patterns (1.0-3.0mm diameter, 2.5-5.0mm pitch) |
| Acoustic Performance | NRC: 0.55-0.85 (with acoustic backing) |
| Fire Rating | Class A |
| Installation System | Clip-in, Lay-in, Hook-on, Linear, Open Cell |
| Suspension System | T15/T24 grid system, Custom suspension systems |
| Moisture Resistance | 100% RH (Relative Humidity) |
| Weight | 3.5-5.0 kg/m² (depending on thickness and perforation) |
| Warranty | 15 years (standard), 20 years (extended) |
| Environmental Compliance | LEED, BREEAM, RoHS, VOC-free |
| Applications | Commercial buildings, Offices, Hospitals, Airports, Retail spaces, Educational facilities |
* Technical specifications may vary based on specific project requirements. Please contact our technical team for custom solutions.
