Gypsum Board
NO. 1 BRAND IN WECAS GYPSUM BOARD
Why No.1?
Because of WECAS !!
gypsum board
Features of Gypsum Board

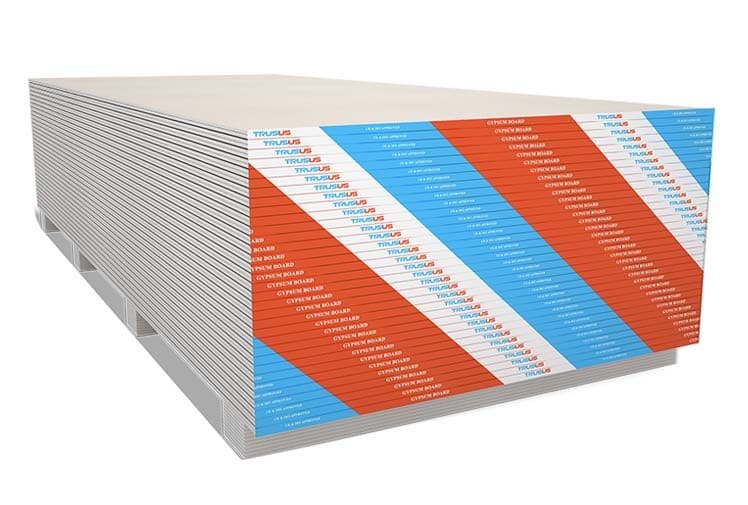

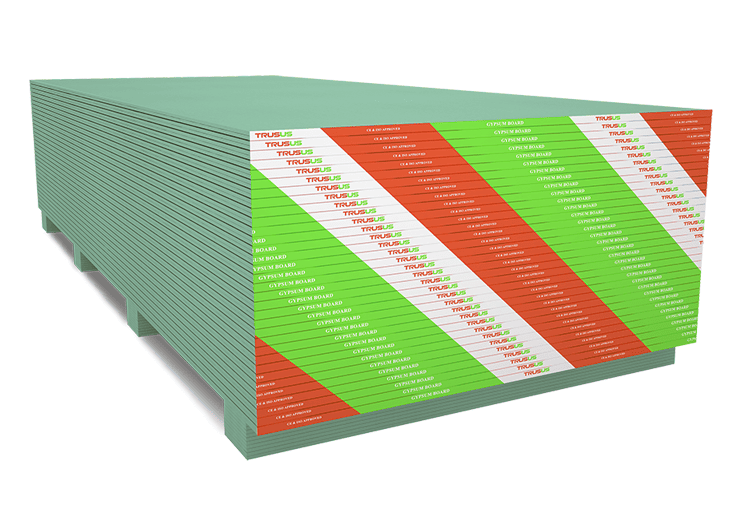

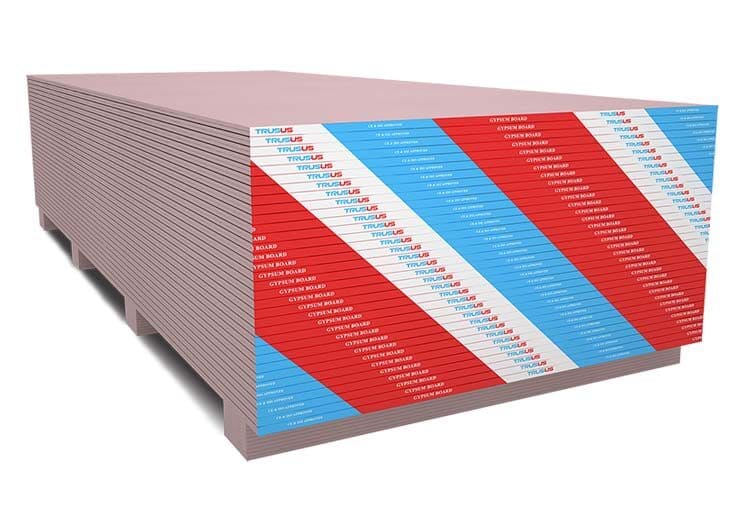

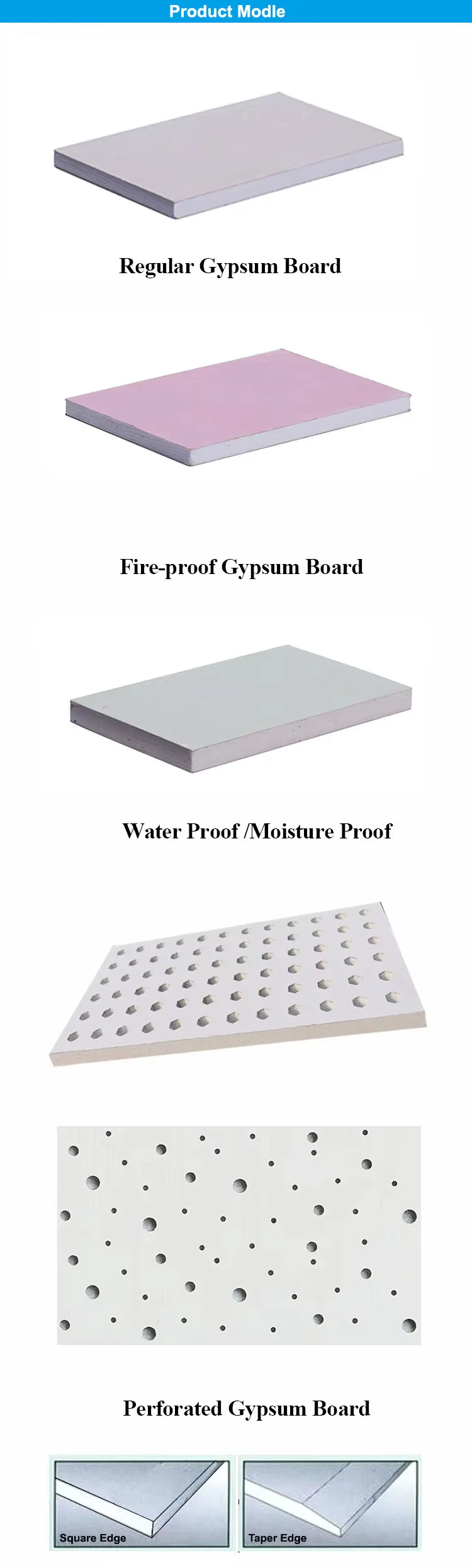

We can provide three kinds of gypsum board as following: standard gypsum board, waterproof gypsum board, fireproof gypsum board
Material: 95% pure nature gypsum powder, 90 degree white, no any smell.
Normally it be used in housing, hotel, school, hospital, factory etc.
The price of tegular edge is the same as the square edge.
Both metric and imperial systems are accept.
Two sheets are packed face to face with tapes.
Standard size: 1200*2400mm or 1220*2440mm, special size is available if bulk quantity
Gypsum Board for Chosen
| Item | Standard | Test Value | |
|---|---|---|---|
| Rupture Load(N) | Thickness 9.5mm–Vertical | ≥ 360 | 440 |
| Thickness 9.5mm–Horizontal | ≥ 140 | 205 | |
| Thickness 12mm–Vertical | ≥ 500 | 590 | |
| Thickness 12mm–Horizontal | ≥ 180 | 212 | |
| Dimension Difference(mm) | Length | -6—0 | -0.1—0 |
| Width | -5—0 | 0 | |
| Thickness 9.5mm | ± 0.5 | -0.1—0 | |
| Thickness 12mm | ± 0.6 | -0.1—0 | |
| The Stability of Meeting Fire (For Fireproof Gypsum Board) | Not Less Than 20min | > 20min | |
| Cater-corner Length Difference MM | ≤ 5 | 0-1 | |
| Inner Irradiation Ratio | I Ra ≤ 1.0 | I Ra < 1.0 | |
| Outer radiation Ratio | I γ ≤ 1.3 | I γ < 0.1 | |
| Weight per unit (kg/m² )-9.5thickness | ≤ 9.5 | 7.7 | |
Gypsum Board Sample Show
Ask us for price and solutions today!
Your inquiry will be replied within 24 hours, and we respect your privacy.
